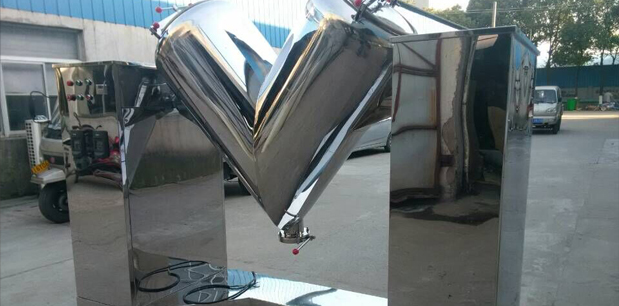

V-type mixer is widely used in pharmaceutical, food, chemical and other industries because of its advantages of uniform mixing, easy cleaning and strong adaptability. It is an important equipment for mixing powder and granular materials. However, in the process of use, there are also problems such as large footprint, high energy consumption and loud noise, and corresponding optimization measures need to be taken. This article will introduce the use method, daily maintenance, working principle and optimization scheme of V blender in detail to help you use the equipment more efficiently and improve production efficiency.

Correct installation steps for V mixer

Correct installation is the prerequisite to ensure the normal operation of the equipment, the following are the key steps to install the V-mixer:

• Choose the right location: It should be placed in a dry, stable and well-ventilated environment to avoid moisture or vibration.
• Install supporting feet: Adjust the supporting feet to keep the device stable and prevent shaking during operation.
• Check the power connection: Make sure the power line is correct to avoid motor reversal

Fill lubricating oil: Fill appropriate amount of lubricating oil in the transmission parts and bearings of the equipment to reduce wear.

The use guide of V mixing machine

Pre-use inspection

Before starting up, the following checks need to be carried out to ensure the normal operation of the device:

✅ Check that all fasteners are tight.

✅ Check whether the electrical circuit is connected correctly and the motor is running normally.

✅ Fill the lubricating part with appropriate amount of lubricating oil to reduce friction loss.

Feed and mix

- First turn the feed port of V-type mixer to the top and open the feed cover.

- The amount of feed should not exceed 60% of the specified volume to ensure sufficient mixing space.

- Close the feed cover tightly to avoid material leakage during mixing.

- After starting the device, the material will continuously tumble, shear and diffuse in the cylinder body to achieve uniform mixing.

- If abnormal vibration or noise is found, stop the machine immediately for inspection.

Stop and discharge materials

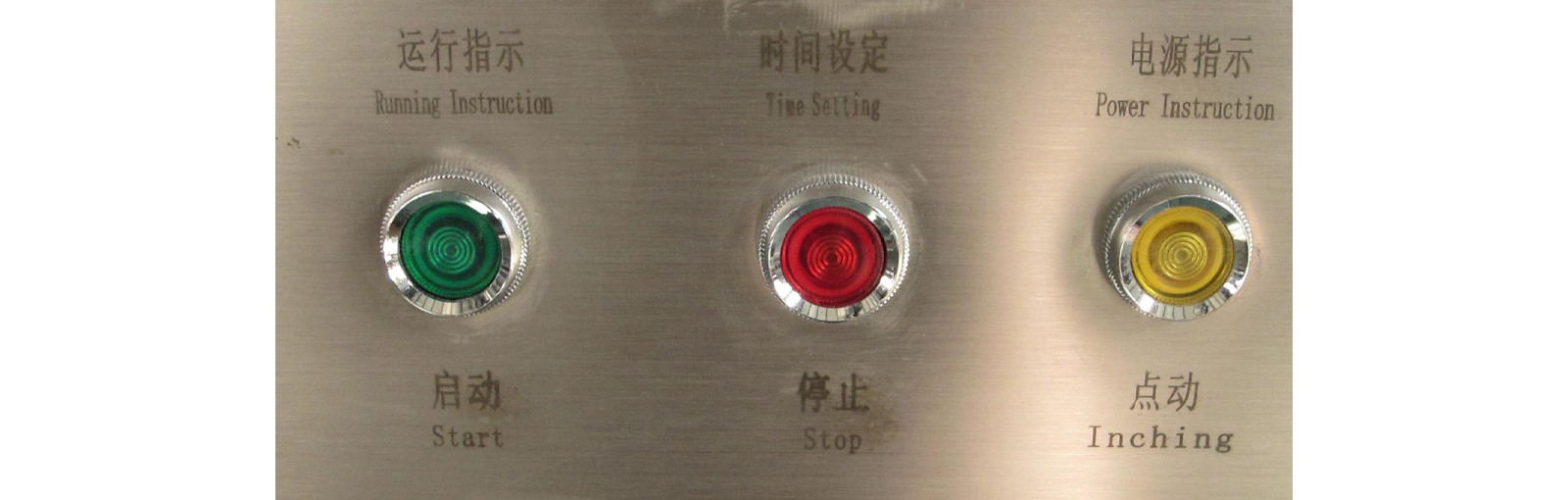

- Adjust the motor speed button to the lowest setting and stop gradually.

- Adjust button to "0" after shutdown to ensure safety.

- Open the material opening and receive the mixed material in the container until the material inside the cylinder is completely discharged.

V mixing machine daily maintenance and maintenance

Regular cleaning: Before changing the material, the inside and outside of the hopper must be thoroughly cleaned to avoid cross contamination.

Lubrication maintenance: Check the lubricating oil condition once a month, and timely supplement or replace.

Fastening check: Regularly check whether the screws and fasteners are loose.

Motor maintenance: Check whether the motor works normally every 6 months to avoid motor damage affecting production.

How to optimize the use of mixer with V type effect?

• Choose the right mixing time: too long may lead to material agglomeration, too short will mix uneven.
• Adjust cylinder speed: Set different speed for different materials to avoid material damage caused by excessive speed.
• With a reasonable feeding sequence: add the main material first, and then add the auxiliary materials to ensure that the mixture is uniform.

How to maximize the value of the V mixer?

    To take full advantage of V-type mixers, businesses need to use them correctly, maintain them regularly, and optimize their operating processes. Reasonable mixing time, appropriate feeding sequence, regular cleaning and maintenance can help the equipment to maintain the best working condition, improve production efficiency, and reduce operating costs. Choosing a suitable V-type mixer, with scientific use and maintenance programs, will help enterprises achieve more efficient and stable production goals!
